JACKS AND PLUGS
FAX: 773 792-2129 MVJ SERIES
* Please visit the product pages on our website for the most up-to-date product information
137

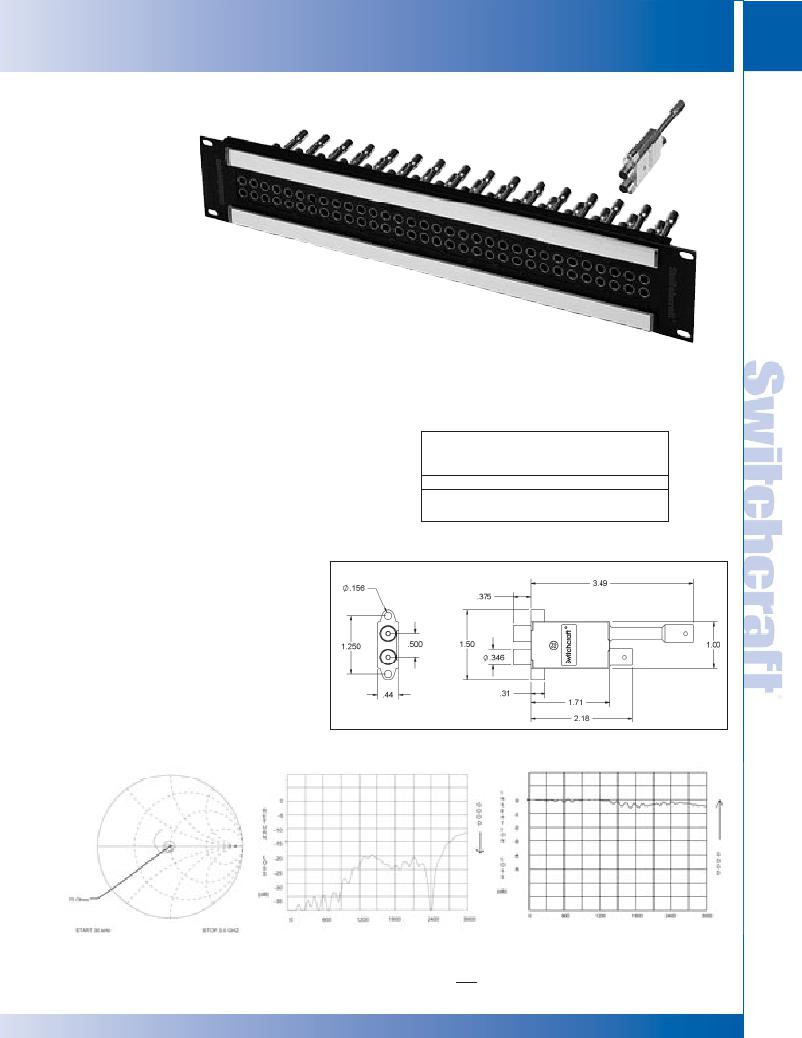

MVJ SERIES
See page 196 for Patch panel information.
MVJ*75T
FEATURES AND BENEFITS
? Midsize video jacks rated from DC to 3 GHz
? Available in terminated or non-terminated configurations
MIDSIZE VIDEO JACK SPECIFICATIONS
ELECTRICAL
Rated Bandwidth: 3.0 GHz
Characteristic Impedance: 75 ohms
Return Loss: See Typical Return Loss Chart
Insertion Loss: See Typical Insertion Loss Chart
Contact Resistance: Less than 20 milliohms
Termination Resistance: 75 W, ±1%
Center Conductor: Accepts .048 pin diameter
MECHANICAL
Mechanical Shock: Per MIL-STD-202,
Method 213, Test condition I
Vibration: Per MIL-STD-202, Method 201
Insertion Force: 12 lbs. maximum
Withdrawal Force: 3 lbs. minimum
Life Cycle: 30,000
MATERIAL
Housing: Zinc alloy, nickel plated
Center Contacts: Copper alloy, gold plated
Switching Springs: Copper alloy, gold plated
Grounding Contacts: Copper alloy,
gold plated
BNC Insulators: Teflon
Actuators: Thermoplastic, UL94V-0 rated
ENVIRONMENTAL
Operating Temperature: – 40oC to 65oC
Storage Temperature: – 55oC to 85oC
Thermal Shock: Per MIL-STD-202,
Method 107
Moisture and Humidity:
Per MIL-STD-202, Method 106
MVP32K3*75T
Ordering Information
Part
Number Jack Description
MVJ*75T HD Terminated
MVJ*NT HD Non-terminated
*Add “N” for non-normalled version
SMITH CHART (TYPICAL)
RETURN LOSS (TYPICAL)
FREQUENCY (MHz)
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
RETURN LOSS (TYPICAL)
FREQUENCY (MHz)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
